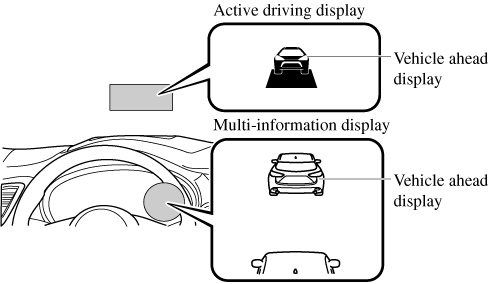

Indication on Display

The DRSS operation status is indicated in the active driving display or multi-information display. Regarding malfunctions, check the vehicle conditions or have it inspected by an Authorized Mazda Dealer according to the content of the displayed message.

Refer to Warning/Indicator Lights (Search).




  • When the ignition is switched off, the operation status before the system was turned off is maintained. For example, if the ignition is switched off with the DRSS operable, the system will be operable when the ignition is switched ON the next time.

  • The DRSS can be turned on/off and the system's sensitivity can be changed.

    Refer to Personalization Features (Search).



Distance-between-vehicles guidelines*1

Indication on display

Distance between vehicles guidelines

(During travel at about 40 km/h (25 mph)

Distance between vehicles guidelines

(During travel at about 80 km/h (50 mph)

Multi-information display

Active driving display

About 25 m (82 ft)

About 50 m (164 ft)

About 20 m (66 ft)

About 40 m (131 ft)

About 15 m (49 ft)

About 30 m (98 ft)

About 10 m (33 ft)

About 20 m (66 ft)

Flashes in white*2

About 10 m (32 ft) or less

About 20 m (65 ft) or less

  1. The distance between vehicles differs depending on vehicle speed.

  2. Indication when the distance setting for notifying the driver that the vehicle approaches a vehicle ahead is Near.
