Owner Maintenance

Headlights (With LED headlights)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorized Mazda Dealer when the replacement is necessary.

Headlights/Daytime running lights (With halogen headlights)

High-beams bulbs/Daytime running lights

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Lift the hood.

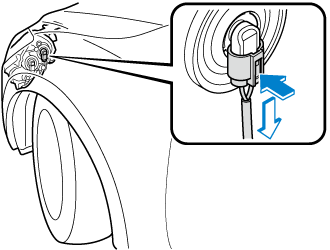

3. Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.

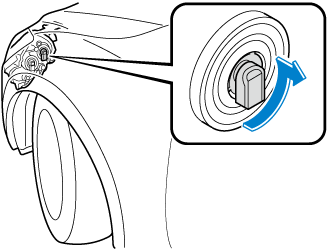

4. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.





5. Install the new bulb in the reverse order of the removal procedure.

Low-beam bulbs

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Lift the hood.

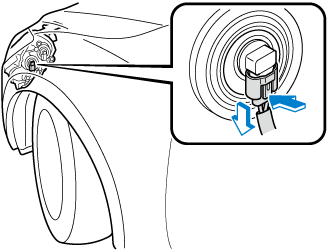

3. Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.

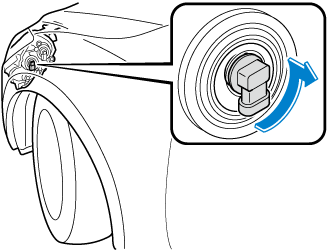

4. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.





5. Install the new bulb in the reverse order of the removal procedure.

Parking lights/Daytime running lights/Front side-marker lights (With LED headlights)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorized Mazda Dealer when the replacement is necessary.

Parking lights/Front side-marker lights (With halogen headlights)

1. Make sure the ignition is switched off, and the headlight switch is off.

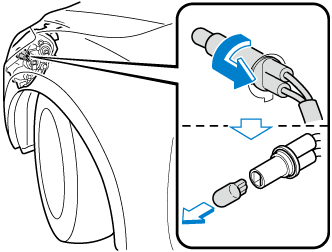

2. Turn the socket and bulb assembly counterclockwise and remove it.

3. Disconnect the bulb from the socket.





4. Install the new bulb in the reverse order of the removal procedure.

Front turn signal lights

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Turn the screw counterclockwise and remove it, and then partially peel back the mudguard.





3. Turn the socket and bulb assembly counterclockwise and remove it.

4. Disconnect the bulb from the socket.





5. Install the new bulb in the reverse order of the removal procedure.

Fog lights (Some Models), Side turn signal lights (Some Models), Brake lights/Taillights (LED type), Rear side-marker lights (LED type),Taillights (LED type) (Some Models), High-mount brake light, Reverse lights (LED type)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorized Mazda Dealer when the replacement is necessary.

Rear turn signal lights, Brake lights/Taillights (Bulb type), Rear side-marker lights (Bulb type)

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Turn the bolts counterclockwise and remove them.





3. Pull the unit rearward to remove it.





4. Turn the socket and bulb assembly counterclockwise and remove it.

5. Disconnect the bulb from the socket.

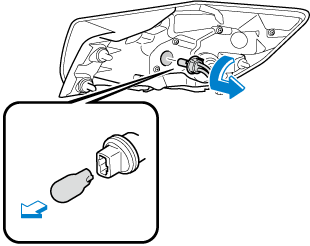

   Rear turn signal lights

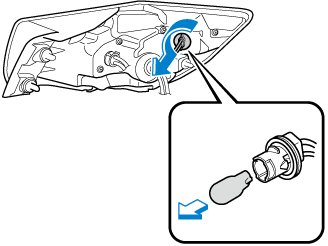

   Brake lights/Taillights





   Rear side-marker lights





6. Install the new bulb in the reverse order of the removal procedure.

Reverse lights (Bulb type)

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Remove the cover.





3. Turn the socket and bulb assembly counterclockwise and remove it.

4. Disconnect the bulb from the socket.





5. Install the new bulb in the reverse order of the removal procedure.

License plate lights

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Remove the cover.





3. Turn the socket and bulb assembly counterclockwise and remove it.





4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse order of the removal procedure.
