Interior Lights



  • Do not leave the lights on for long periods while the engine is turned off. Otherwise the battery power could be depleted.

Close Note
View Note

Overhead Lights

Type A

Switch Position

Overhead Lights

Light off

  • Light is on when any door is open

  • Light is on or off when the illuminated entry system is on

Light on

Front

Center

Rear



The rear overhead light and the center map lights also turn on and off when the front overhead light switch is operated.

Close Note
View Note

Type B

Switch

Overhead Lights

(DOOR OFF)

The DOOR OFF switch can be switched between the DOOR position and DOOR OFF position.

DOOR position

  • The lights turn on when any of the doors is opened.

  • The lights turn on/off in conjunction with the illuminated entry system.

DOOR OFF position

  • The lights do not turn on even if any of the doors is opened.

  • The lights do not turn on/off in conjunction with the illuminated entry system.

(ON/OFF)

Press the switch to turn it on. Press the switch again to turn off the lights.

Front

Center

Rear

Front Map Lights

Type A

When the overhead light switch is in the door or off position, press the lens to illuminate the front map lights, and then press the lens again to turn them off.



The front map lights will not turn off even if the lens is pressed in the following cases:

  • The overhead light switch is in the ON position.

  • The overhead light switch is in the door position with the door open.

  • The illuminated entry system is on.

Close Note
View Note

Type B

Press the switch to illuminate the front map lights, and then press the switch again to turn them off.



The front map lights will not turn off even if the switch is pressed in the following cases:

  • The overhead lights turn on by operating the overhead ON/OFF switch ().

  • The overhead lights turn on in conjunction with a door opening/closing.

  • The illuminated entry system is on.

Close Note
View Note

Center Map Lights

Type A

When the overhead light switch is in the door or off position, press the lens to illuminate a center map light, and then press the lens again to turn it off.



  • Once the center map lights have been turned off, they will turn on and off depending on the position to which the overhead light is switched.

  • The center map lights will not turn off even if the lens is pressed in the following cases:

    • The overhead light switch is ON.

    • The overhead light switch is in the door position with the door open.

    • The illuminated entry system is on.

Close Note
View Note

Type B

Press the switch to illuminate the center map lights, and then press the switch again to turn them off.



  • Once the center map lights have been turned off, they will turn on and off in conjunction with the overhead light operation.

  • The center map lights will not turn off even if the switch is pressed in the following cases:

    • The overhead lights turn on by operating the overhead ON/OFF switch ().

    • The overhead lights turn on in conjunction with a door opening/closing.

    • The illuminated entry system is on.

Close Note
View Note

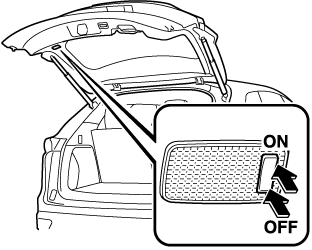

Luggage Compartment Lights



Switch Position

Luggage Compartment Light

Light off

Light on when the liftgate is open

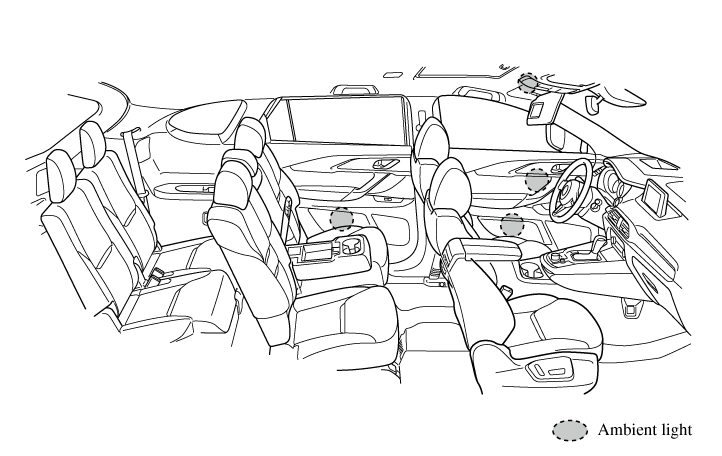

Ambient Light (Some Models)

The ambient lights continuously turn on when the ignition is switched ON.

The ambient lights dim when the parking lights or headlights are turned on.



  • The ambient lights turn on or off in conjunction with the illuminated entry system when the ignition is switched OFF.

  • The ambient light illumination level can be changed while the parking lights or headlights are turned on.

    Refer to the Settings section in the Mazda Connect Owner's Manual.

Close Note
View Note
