USB Power Outlet (Some Models)
Second-row seat (6:4 split adjustable-type bench seat type, Captain seat and second-row seat console type)
The USB power outlets can be used regardless of whether the ignition is switched to ACC or ON.
Only use USB devices that have a maximum power consumption of 10.5W (DC5V, 2.1A) or below.

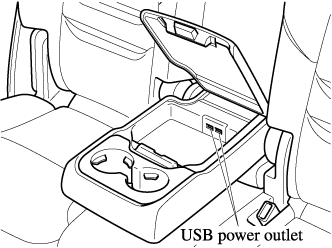

6:4 split adjustable-type bench seat type
Captain seat and second-row seat console type
To prevent USB power outlets damage or electrical failure, pay attention to the following:
-
Do not use USB devices that require more than 10.5 W (DC 5 V, 2.1 A).
-
Close the lid when the USB power outlets are not in use to prevent foreign objects and liquids from getting into the USB power outlets.
-
Correctly connect the USB connector into the USB power outlets.
-
The USB power outlets are designed only for charging and they cannot be used for connecting to the vehicle's audio system.
-
To prevent discharging of the battery, do not use the USB power outlets for long periods with the engine off or idling.
How to connect
The groove in the armrest box can be used to pass the cord of the device into the box to connect it to the USB power outlets.
-
Open the lid.
-
Route the cord through the groove in the armrest box and insert the USB connector into the USB power outlets.

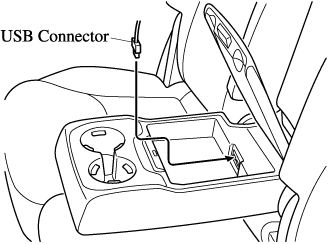

6:4 split adjustable-type bench seat type

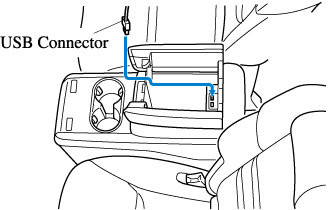

Captain seat and second-row seat console type
Second-row seat (Captain seat and walk through type)
The USB power outlets can be used regardless of whether the ignition is switched to ACC or ON.
Only use USB devices that have a maximum power consumption of 12.5W (DC5V, 2.5A) or below.
To prevent USB power outlets damage or electrical failure, pay attention to the following:
-
Do not use USB devices that require more than 12.5 W (DC 5 V, 2.5 A).
-
Correctly connect the USB connector into the USB power outlets.
-
The USB power outlets are designed only for charging and they cannot be used for connecting to the vehicle's audio system.
-
To prevent discharging of the battery, do not use the USB power outlets for long periods with the engine off or idling.
Third-row seat
The USB power outlets can be used regardless of whether the ignition is switched to ACC or ON.
Only use USB devices that have a maximum power consumption of 12.5W (DC5V, 2.5A) or below.
To prevent USB power outlets damage or electrical failure, pay attention to the following:
-
Do not use USB devices that require more than 12.5 W (DC 5 V, 2.5 A).
-
Correctly connect the USB connector into the USB power outlets.
-
The USB power outlets are designed only for charging and they cannot be used for connecting to the vehicle's audio system.
-
To prevent discharging of the battery, do not use the USB power outlets for long periods with the engine off or idling.
