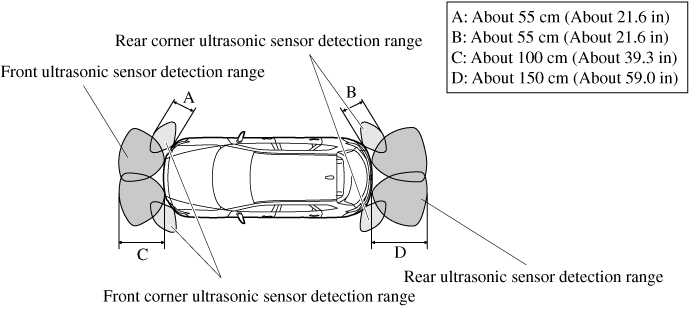

Sensor Detection Range
The sensors detect obstructions within the following range.
Viewing distance display
|
Display |
Distance between vehicle and obstruction |
|||
|---|---|---|---|---|
|
Without 360° view monitor |
With 360° view monitor |
Front ultrasonic sensor (Some Models)/Front corner ultrasonic sensor (Some Models) |
Rear ultrasonic sensor/Rear Corner ultrasonic sensor |
|
|
Without front ultrasonic sensor and front corner ultrasonic sensor |
With front ultrasonic sensor and front corner ultrasonic sensor |
|||
 |
 |
Green  |
Front ultrasonic sensor: Approx. 100―60 cm (39.4―23.6 in) |
Rear ultrasonic sensor: Approx. 150―60 cm (59.1―23.6 in) |
 |
 |
Yellow  |
Front ultrasonic sensor: Approx. 60―45 cm (23.6―17.7 in) Front corner ultrasonic sensor: Approx. 55―38 cm (21.7―14.9 in) |
Rear ultrasonic sensor: Approx. 60―45 cm (23.6―17.7 in) Rear corner ultrasonic sensor: Approx. 55―38 cm (21.7―14.9 in) |
 |
 |
Amber  |
Front ultrasonic sensor: Approx. 45―35 cm (17.7―13.8 in) Front corner ultrasonic sensor: Approx. 38―25 cm (15―9.8 in) |
Rear ultrasonic sensor: Approx. 45―35 cm (17.7―13.8 in) Rear corner ultrasonic sensor: Approx. 38―25 cm (15―9.8 in) |
 |
 |
Red  |
Front ultrasonic sensor: Within approx. 35 cm (13.8 in) Front corner ultrasonic sensor: Within approx. 25 cm (9.8 in) |
Rear ultrasonic sensor: Within approx. 35 cm (13.8 in) Rear corner ultrasonic sensor: Within approx. 25 cm (9.8 in) |
