Cautions on Use
An electric vehicle has high voltage areas and high temperature areas.
Labels indicating the cautions on use are applied to these areas. Always follow the instructions on the label and use the vehicle correctly.
Be very careful of high voltage areas. In addition, do not disassemble, modify, or remove any high voltage parts:

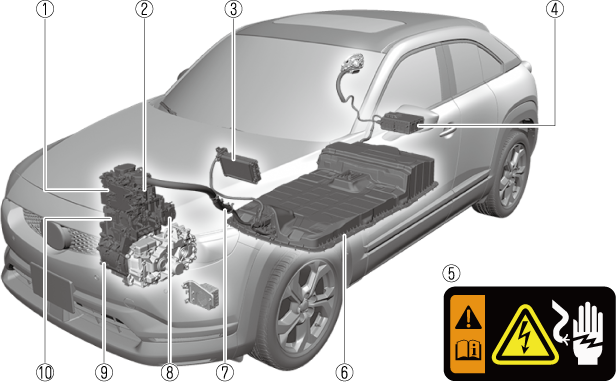

The following areas contain high voltage parts and may cause electrical shock if touched.
-
DC-DC Converter
-
Junction Box
-
PTC Heater
-
Onboard Charger
-
Warning Label Example
-
High Voltage Battery
-
High Voltage Cable
-
Electric Compressor
-
Motor
-
Inverter
Be very careful of high temperature areas:
Always follow the instructions on the labels inside the motor compartment. After driving, the motor temperature may be high.
Do not open the hood while the EV system or Climate Control Timer is operating or during timer charging, normal charging, or quick charging:
The cooling fan in the motor compartment may rotate suddenly and your hand, clothes, or accessories may touch the fan or become caught, resulting in serious injury or death.
