Adjusting the Front Passenger's Seat

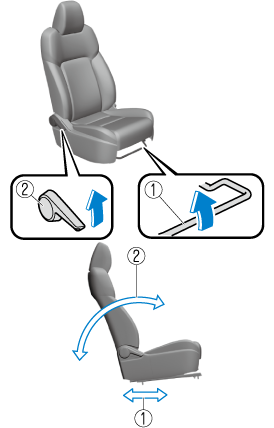

Manual seat

  1. Seat Slide

    To move a seat forward or backward, raise the lever and slide the seat to the desired position and release the lever.

    Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.

  2. Seat Recline

    To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever.

    Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

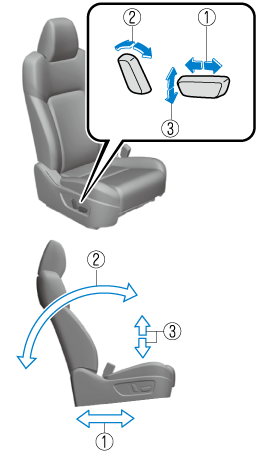

Power seat

  1. Seat Slide

    To slide the seat, move the slide lifter switch on the outside of the seat to the front or back and hold it. Release the switch at the desired position.

  2. Seat Recline

    To change the seatback angle, press the front or rear side of the reclining switch. Release the switch at the desired position.

  3. Height Adjustment

    To adjust the seat height, move the slide lifter switch up or down. Release the switch at the desired position.
