Inspecting Engine Oil



Do not overfill the engine oil. This may cause engine damage.

Close Caution
View Caution



Use center display screen indication to inspect the engine oil level.

  1. Make sure the hood is closed.

  2. Start the hybrid system.

  3. Select “Information” on the Home screen to display the vehicle status monitor.

  4. Select “Vehicle Status Monitor”.

  5. Select “Engine Oil Level”.

  6. Select “Start”.

    The engine starts and measurement of the engine oil level begins. Do not depress the accelerator pedal during the measurement.



    If measurement conditions not shown on the display are not met such as when warm-up operation has not been completed due to low outdoor temperatures, the measurement error screen may be displayed. In this case, drive the vehicle using the engine for a certain period of time to complete the warm-up operation and repeat the procedure.

    Close Note
    View Note



  7. Switch the vehicle power OFF.



    After the measurement is completed, the engine does not stop automatically.

    Close Note
    View Note

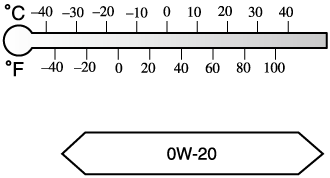

Recommended Oil

Use SAE 0W-20 engine oil.

Mazda Genuine Oil is used in your Mazda vehicle. Mazda Genuine 0W-20 Oil is required to achieve optimum fuel economy.

For maintenance service, Mazda recommends Genuine Mazda Parts and Genuine Mazda Premium Oil.



Only use SAE 0W-20 oil “Certified For Gasoline Engines” by the American Petroleum Institute (API).

Oil with this trademark symbol conforms to the current engine and emission system protection standards and fuel economy requirements of the International Lubricant Standardization and Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers.
