Warnings and Cautions for Using the 360° View Monitor



Always confirm the safety of the area around the vehicle visually when driving.

The 360° View Monitor is an auxiliary device which assists the driver in checking the safety of the area around the vehicle.

Do not rely completely on the 360° View Monitor.

  • The shooting range of the cameras and detection range of the sensors are limited. For example, the following locations displayed on the screen may be blind spots and target objects may not be visible.

    • Areas in black on screen

    • Seams where each of camera images merge

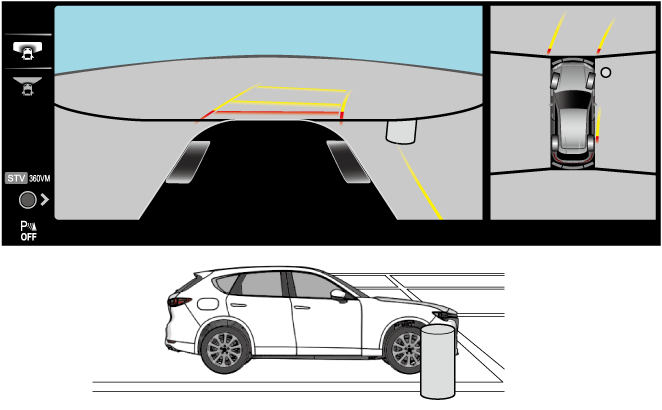

  • See-Through View may not be able to accurately display obstructions near the seams of the image.

  • Vehicle width extension lines and projected vehicle paths are only estimates. Images displayed on the display may differ from the actual conditions.

Close Warning
View Warning



  • Handle the cameras appropriately. If the cameras are handled incorrectly, images may not be displayed normally.

    Refer to Cameras (Search).

  • Do not use the 360° view monitor in the following locations or conditions.

    • Bumpy roads

    • The vehicle is on a road incline.

    • Icy or snow-covered roads

    • Tire chains or a temporary spare tire is installed.

    • The doors are not fully closed.

    • The outside mirrors are retracted.

  • If the doors are not completely closed, images and guide lines may not be displayed correctly.

  • Heed the following cautions to assure that the 360° view monitor operates normally.

    • Do not modify the suspensions.

    • Always use wheels of the specified size for the front and rear wheels. Consult an Authorized Mazda Dealer for tire replacement.

  • When the center display is cold, images may leave trails or the display might be darker than usual, making it difficult to check the vehicle surroundings. Always confirm the safety around the vehicle visually when driving.

  • Recognizing images at night may be difficult because there are no lights in the shooting range of the side camera. Always confirm the safety around the vehicle visually when driving.

  • The method for parking/stopping the vehicle using the 360° View Monitor differs depending on the road conditions and vehicle conditions. In addition, when and how much you turn the steering wheel will differ depending on the situation, therefore always check the vehicle surroundings directly with your eyes while using the system.

Close Caution
View Caution
