Inspecting Engine Oil



Do not overfill the engine oil. This may cause engine damage.

Close Caution
View Caution



Use center display screen indication to inspect the engine oil level.

  1. Make sure the hood is closed.

  2. Start the engine.

  3. Select “Information” on the Home screen to display the vehicle status monitor.

  4. Select “Vehicle Status Monitor”.

  5. Select “Engine Oil Level”.

  6. Select “Start”.

    Measurement of the engine oil level begins. Do not depress the accelerator pedal during the measurement.



    If measurement conditions not shown on the display are not met such as when warm-up operation has not been completed due to low outdoor temperatures, “Engine On: No” may be displayed even if the engine is running or the measurement error screen may be displayed after measurement starts. In this case, drive the vehicle for a certain period of time to complete the warm-up operation, stop the engine and leave it for about 10 minutes, and then perform the measurement procedure again.

    Close Note
    View Note



  7. Switch the vehicle power OFF.



    After the measurement is completed, the engine does not stop automatically.

    Close Note
    View Note



Recommended Oil

U.S.A., Canada

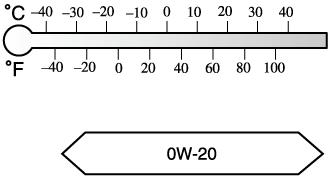

Use SAE 0W-20 engine oil.

Mazda Genuine Oil is used in your Mazda vehicle. Mazda Genuine 0W-20 Oil is required to achieve optimum fuel economy.

For maintenance service, Mazda recommends Genuine Mazda Parts and Genuine Mazda Premium Oil.



Only use SAE 0W-20 oil “Certified For Gasoline Engines” by the American Petroleum Institute (API).

Oil with this trademark symbol conforms to the current engine and emission system protection standards and fuel economy requirements of the International Lubricant Standardization and Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers.





Except U.S.A., Canada

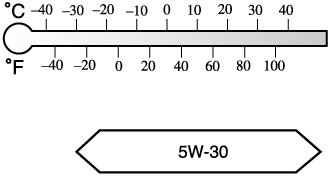

Use SAE 5W-30 engine oil.

Oil container labels provide important information.

A chief contribution this type of oil makes to fuel economy is reducing the amount of fuel necessary to overcome engine friction.



For maintenance service, Mazda recommends Mazda Genuine Parts.



(Mexico)

Use API SM or higher, SAE 5W-30 engine oil. If SAE 5W-30 engine oil is not available, use SAE 5W-20, SAE 0W-30 or SAE 10W-30 engine oil.



The quality designation SM, SN or SP must be on the label.
