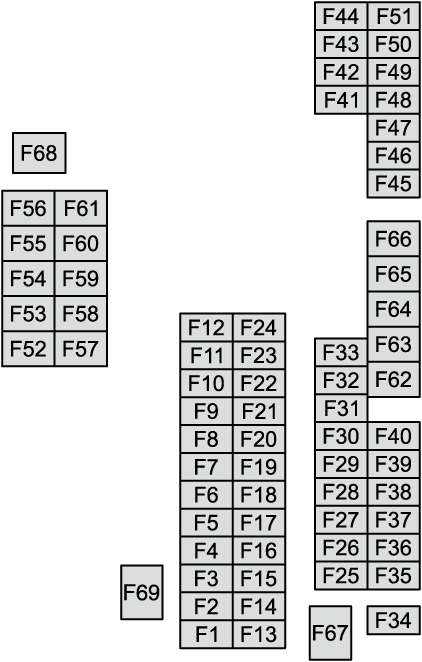

Engine Compartment Inspection

F1

7.5 A

Engine control system

F2

15 A

Headlight (RH) 2

F3

7.5 A

EV control system

F4

15 A

For protection of various circuits

F5

7.5 A

i-ACTIVSENSE (Some Models)

F6

7.5 A

ABS, Dynamic stability control system

F7

10 A

Fuel lid

F8

20 A

Engine control system

F9

20 A

Engine control system

F10

15 A

EV control system

F11

―

―

F12

20 A

For protection of various circuits

F13

25 A

For protection of various circuits

F14

15 A

Accessory sockets

F15

20 A

Engine control system

F16

15 A

Headlight (LH) 1

F17

15 A

Headlight (LH) 2

F18

20 A

Injector

F19

15 A

Horn

F20

7.5 A

On board diagnostics

F21

15 A

For protection of various circuits

F22

15 A

Headlight (RH) 1

F23

30 A

Engine control system

F24

―

―

F25

7.5 A

Grille shutter

F26

10 A

Engine control system

F27

7.5 A

Engine control system

F28

15 A

For protection of various circuits

F29

15 A

i-ACTIVSENSE

F30

15 A

Instrument cluster

F31

7.5 A

Air bag

F32

15 A

Change control system

F33

15 A

Accessory sockets

F34

25 A

For protection of various circuits

F35

―

―

F36

―

―

F37

―

―

F38

―

―

F39

7.5 A

Headlights

F40

15 A

Windshield washer

F41

15 A

Panorama sunroof (Some Models)

F42

15 A

Panorama sunroof (Some Models)

F43

7.5 A

EV control system

F44

10 A

For protection of various circuits

F45

10 A

Engine control system

F46

7.5 A

EV control system

F47

10 A

ABS, Dynamic stability control system

F48

10 A

Injector

F49

7.5 A

EV control system

F50

15 A

Audio

F51

―

―

F52

40 A

For protection of various circuits

F53

50 A

ABS, Dynamic stability control system

F54

30 A

ABS, Dynamic stability control system

F55

―

―

F56

30 A

For protection of various circuits

F57

50 A

ABS, Dynamic stability control system

F58

50 A

ABS, Dynamic stability control system

F59

―

―

F60

20 A

Windshield wiper

F61

―

―

F62

30 A

Rear window defogger

F63

20 A

Windshield wiper de-icer

F64

40 A

Air conditioner

F65

50 A

For protection of various circuits

F66

―

―

F67

60 A

Cooling fan

F68

60 A

Power steering system

F69

125 A

For protection of various circuits

F1

―

―

F2

―

―

F3

20 A

Front seat warmer (Some Models)

F4

15 A

Power door locks (Driver)

F5

―

―

F6

20 A

Rear seat warmer (Some Models)

F7

25 A

Power liftgate

F8

30 A

Power seat (Passenger) (Some Models)

F9

30 A

Power windows (Driver)

F10

―

―

F11

30 A

Power seat (Driver) (Some Models)

F12

―

―

F13

―

―

F14

―

―

F15

15 A

Liftgate lock

F16

10 A

Illumination

F17

10 A

Brake lights

F18

10 A

Reverse lights

F19

10 A

Rear turn signal lights

F20

10 A

Taillights

F21

10 A

Taillights

F22

7.5 A

Air bag

F23

―

―

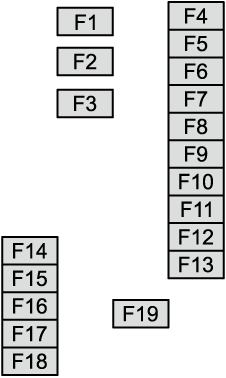

F1

―

―

F2

30 A

Power windows (Passenger)

F3

40 A

EV control system

F4

25 A

Electric Parking Brake (EPB) (RH)

F5

25 A

Electric Parking Brake (EPB) (LH)

F6

25 A

Audio system

F7

15 A

Audio system

F8

15 A

Power door locks (Passenger)

F9

―

―

F10

7.5 A

EV control system

F11

7.5 A

EV control system

F12

10 A

EV control system

F13

10 A

EV control system

F14

10 A

EV control system

F15

10 A

EV control system

F16

10 A

EV control system

F17

10 A

EV control system

F18

―

―

F19

150 A

For protection of various circuits
