How to Use the Front Seats

Driver's Seat

Manual seat

  1. Seat Slide

  2. Height Adjustment

  3. Seat Recline

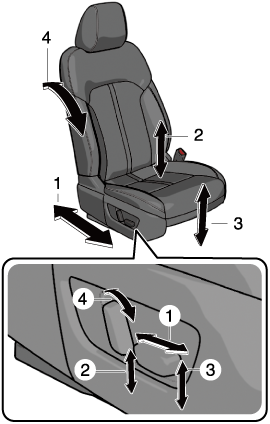

Power seat

  1. Seat Slide

  2. Height Adjustment

  3. Height Adjustment for Front Edge of Seat Bottom

  4. Seat Recline

  5. Lumbar Support Adjustment

Passenger's seat

Manual seat

  1. Seat Recline

  2. Height Adjustment (Some Models)

  3. Seat Slide

Power seat

  1. Seat Slide

  2. Height Adjustment (Some Models)

  3. Height Adjustment for Front Edge of Seat Bottom (Some Models)

  4. Seat Recline



(Power Seat)

The seat-bottom power adjustment is operated by motors. Avoid extended operation because excessive use can damage the motors.

  • To prevent the battery from running down, avoid using the power adjustment when the engine is stopped. The adjuster uses a large amount of electrical power.

  • Do not use the switch to make more than one adjustment at a time.
