Fully Automatic Climate Control System (Rear)

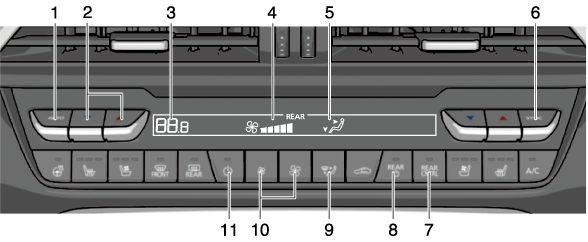

Front

1 AUTO switch

2 Driver's side temperature setting switch

3 Temperature setting display

4 Airflow display

5 Mode selector display

6 SYNC (synchronized temperature) switch

7 Rear control switch

8 Rear climate control system power switch (system on/off)

9 Mode selector switch

10 Fan control switch

11 Climate control system power switch

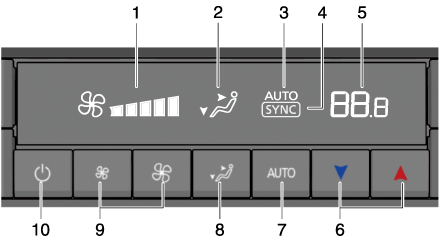

Rear

1 Airflow display

2 Mode selector display

3 AUTO display

4 SYNC (synchronized temperature) display

5 Temperature setting display

6 Temperature setting switch

7 AUTO switch

8 Mode selector switch

9 Fan control switch

10 Climate control system power switch
