How to Use the Instrument Cluster

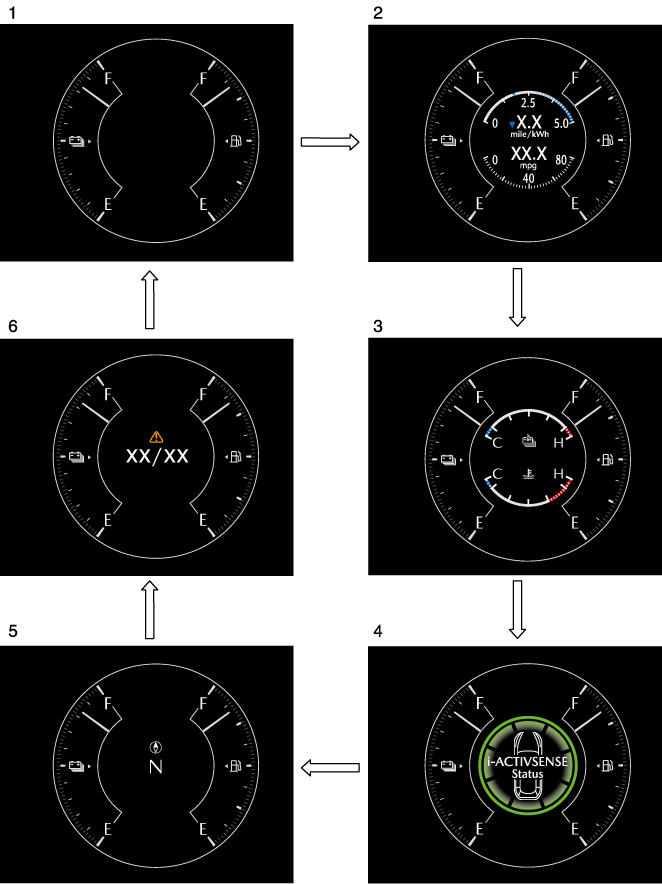

The display changes each time the INFO switch is pressed.

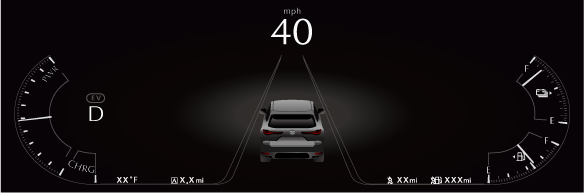

1 Basic display
2 Average electrical power consumption rate display
Average fuel economy display
Instantaneous electrical power consumption rate display
Instantaneous fuel economy display
3 High voltage battery temperature gauge
Engine coolant temperature gauge
4 i-ACTIVSENSE status symbol (Warning/Risk avoidance support system)
5 Compass display
6 Message display*1
-
Displayed only when a warning occurs.
The screen will switch automatically when some i-ACTIVSENSE systems are used.
