Fuel Economy Monitor

The Fuel Consumption information is displayed by operating each icon in the display.

In addition, after completing a trip, the total energy efficiency to date is displayed in the ending display when the ending display is turned on.

The upper limit of the fuel economy monitor differs depending on the vehicle model.

Select the icon on the home screen to display the Applications screen.
Select the “Fuel Economy Monitor”.

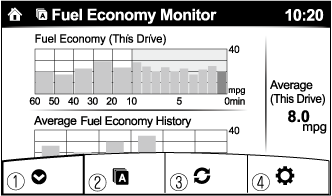

Select the icon at the bottom left of the screen to display the menu in the lower part of the screen.
Select the icon in the menu and perform the operation. Each icon operates as follows:

Indication on display	Control status
	Hides the menu display.
	Displays the Applications screen.
	Resets the fuel economy data.
	Displays the following setting screen. Ending display on/off switching On/off switching for function which synchronizes (links) reset of fuel economy data with trip meter (TRIP A) (Some Models)

The fuel economy monitor screen after the ignition is switched from ON to OFF is changed to the original fuel economy monitor screen when the ignition is switched ON the next time.

Close Note

View Note

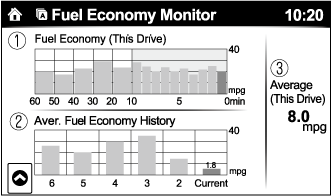

Fuel Consumption Display

Information regarding the fuel economy is displayed.

Indication on display	Control status
	Displays the fuel economy for the past 60 minutes. Displays the fuel economy every minute for the past 1 to 10 minutes. Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
	Displays the average fuel economy over the past 5 resets and after the current reset.
	Calculates the average fuel economy every minute after vehicle travel begins, and displays it.

The fuel economy data is synchronized (linked) with the average fuel economy displayed in the tripmeter (TRIP A).
To reset the fuel economy data, press the icon in the menu. (The average fuel economy and TRIP A displayed in the tripmeter (TRIP A) reset at the same time/The average fuel economy displayed in the trip computer resets at the same time.)
After resetting the fuel economy data, “-- -” is displayed while the average fuel economy is being calculated.

Close Note

View Note

Ending Screen Display

If the ending display on the fuel economy monitor is on when the ignition is switched from ON to OFF, the information regarding the fuel economy is displayed.

Fuel Economy Data Reset and Trip Meter (TRIP A) Synchronization (Linking) (Some Models)

Because the average fuel economy indication on the instrument cluster display is linked with the “Average Fuel Economy History” (Current) indication on the center display, when one is reset the other is also reset.

In addition, switching between reset and no reset of the average fuel economy indication on the instrument cluster display and the “Average Fuel Economy History” (Current) indication on the center display when resetting the trip meter (TRIP A) is possible.

Reset operation item	Synchronized (linked) and reset information
Reset operation item	Trip meter (TRIP A)	Average fuel economy on instrument cluster display	“Average Fuel Economy History” (Current) indication on the center display
Trip meter (TRIP A)	X	X/—^*1	X/—^*1
Average fuel economy on instrument cluster display	—	X	X
“Average Fuel Economy History” (Current) indication on the center display	—	X	X

X: Reset

—: Not reset

Can be personalized.

Refer to Personalization Features (Search).
