Luggage Compartment
Cargo Securing Loops
Use the cargo securing loops in the luggage compartment to secure cargo with a rope or net. The tensile strength of the loops is 196 N (20 kgf, 44 lbf). Do not apply excessive force to the cargo securing loops as it will damage them.
Trim side
Luggage board side
When not using the cargo securing loops, return them to their original positions. If the cargo securing loops are not returned to their original positions and cargo is placed on the top of them, the cargo securing loops could be deformed or damaged.
When using the cargo securing loops, hook them to the pins.
Cargo Sub-Compartment
The cargo sub-compartment is located under the luggage board, and it can be used to store small items.
-
Do not apply excessive force to the luggage board when setting it up. Otherwise, it could deform or damage the luggage board.
-
Return the luggage board to its original position before driving the vehicle. If the vehicle is driven with the luggage board set up, it could cause an unexpected accident.
-
When not using the handle, return it to its original position. If the handle is not returned to its original position and cargo is placed, it could contact the handle and the handle could be deformed or damaged.
-
Lift up the luggage board.
-
Insert the luggage board into the left and right grooves.
Luggage Board
The height of the floor surface can be adjusted by changing the installation position of the luggage board.
Reversible Luggage Board (Some Models)
The luggage board can be used with the underside facing up, depending on the intended use. The underside is made of stain-resistant material which is easy to clean.
Do not spray large amounts of liquid such as water on the luggage board. If a large amount of water or other liquid is poured or sprayed on the luggage board, the water or other liquid may leak down and wet the luggage under the board.
When using the luggage board in the upper level
-
Place the front luggage board.
-

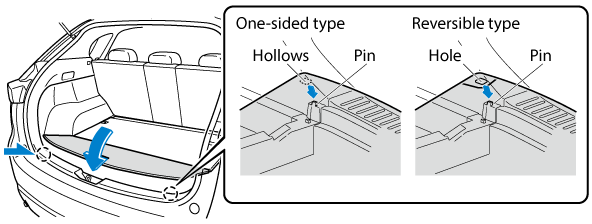

Insert the left and right hollows or holes of the rear luggage board into the pins.
-
Remove in the reverse order of the installation procedure.
When using the luggage board in the lower level
-
When not using the cargo securing loops, return them to their original positions.
Refer to Cargo Securing Loops (Search)
-
Slide the front luggage board into the lower grooves and install.
-

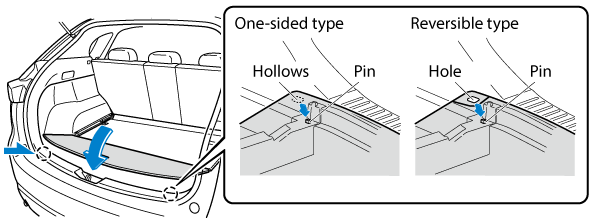

Insert the left and right hollows or holes of the rear luggage board into the pins.
-
Remove in the reverse order of the installation procedure.

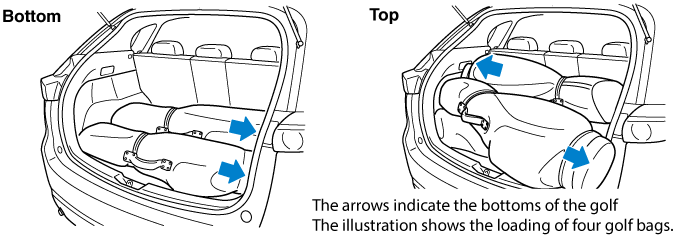

Loading golf bags
(Some golf bags may not fit using the following methods depending on their sizes.)
Up to four golf bags can be carried in the luggage compartment.
Bottom: Place the first and second golf bags in the luggage compartment with the bottoms pointed to the right.
Top: Place the third golf bag with its bottom pointed to the left and the fourth golf bag with its bottom pointed to the right in the luggage compartment.
