2.5 S
Starting At $29,990 1
- 12.9" center touchscreen
Cloth-trimmed seats
17" alloy wheels
- i-ACTIV AWD®
Starting At $29,990 1
2026 MAZDA CX-5
COMPARE TRIMS AND SPECS
Explore our versatile trim levels below to see which Mazda CX-5 could be perfect for your ever-expanding life.
Explore our versatile trim levels below to see which Mazda CX-5 could be perfect for your ever-expanding life.
2.5 S Select
Starting At $31,990 1
- Leatherette-trimmed seats
- Frameless auto-dimming mirror
- Wireless phone charger
- Automatic folding side mirrors
Starting At $31,990 1
2.5 S Preferred
Starting At $34,250 1
- Power rear liftgate
19" wheels, machine cut
10-way power-adjustable driver's seat
- Aluminum roof rails in Black finish
Starting At $34,250 1
2.5 S Premium
Starting At $36,900 1
Leather-trimmed seats
Power panoramic moonroof
Active driving display
- Ventilated front seats
Starting At $36,900 1
2.5 S Premium Plus
Starting At $38,990 1
- 15.6" center touchscreen
- 360° View Monitor
- Hands-free power rear liftgate
- Paddle shifters
Starting At $38,990 1
Exterior
Interior
Feature
- 12.9" center touchscreen
Cloth-trimmed seats
17" alloy wheels
- i-ACTIV AWD®
- Leatherette-trimmed seats
- Frameless auto-dimming mirror
- Wireless phone charger
- Automatic folding side mirrors
- Power rear liftgate
19" wheels, machine cut
10-way power-adjustable driver's seat
- Aluminum roof rails in Black finish
Leather-trimmed seats
Power panoramic moonroof
Active driving display
- Ventilated front seats
- 15.6" center touchscreen
- 360° View Monitor
- Hands-free power rear liftgate
- Paddle shifters
Key Features
ENGINE & TORQUE
|
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder, 186 lb-ft of torque |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder, 186 lb-ft of torque |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder, 186 lb-ft of torque |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder, 186 lb-ft of torque |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder, 186 lb-ft of torque |
DRIVETRAIN
|
i-ACTIV AWD® |
i-ACTIV AWD® |
i-ACTIV AWD® |
i-ACTIV AWD® |
i-ACTIV AWD® |
Mazda Intelligent Drive Select (Mi-Drive)
|
Sport and Off-road modes |
Sport and Off-road modes |
Sport and Off-road modes |
Sport and Off-road modes |
Sport and Off-road modes |
EPA-ESTIMATED FUEL ECONOMY
|
24 / 302 |
24 / 302 |
24 / 302 |
24 / 302 |
24 / 302 |
ANDROID AUTO™ / APPLE CARPLAY® INTEGRATION3
|
Wired |
Wireless |
Wireless |
Wireless |
Wireless |
MAZDA RADAR CRUISE CONTROL WITH STOP AND GO4 and SPEED LIMIT ASSIST
|
Standard |
Standard |
Standard |
Standard |
Standard |
BLIND SPOT MONITORING AND REAR CROSS TRAFFIC ALERT5
|
Standard |
Standard |
Standard |
Standard |
Standard |
EPA CARGO VOLUME, REAR SEATBACK DOWN, FLOORBOARD UP/DOWN (cu ft)
|
66.5 |
66.5 |
66.5 |
66.5 |
66.5 |
REAR POWER LIFTGATE WITH PROGRAMMABLE HEIGHT ADJUSTMENT6
|
- |
- |
Standard |
Standard |
Hands-free |
GOOGLE BUILT-IN (via MCS 1-year trial)7
|
Standard |
Standard |
Standard |
Standard |
Standard |
Exterior
EXTERIOR FEATURES
| LIGHTING | ||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| WIPERS | ||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| SIDE MIRRORS | ||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| EXTERIOR TRIM | ||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| OTHER EXTERIOR FEATURES | ||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
WHEELS & TIRES
| WHEEL SIZE (IN) | |||||

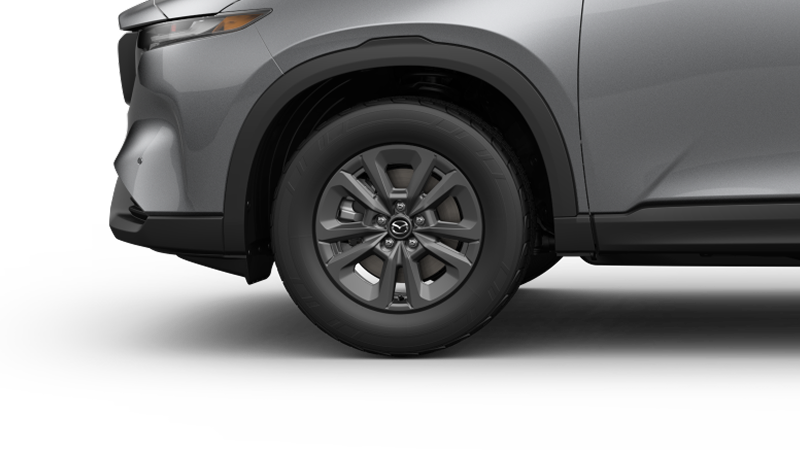

17 x 7 aluminum alloy with Gray Metallic finish |
17 x 7 aluminum alloy with Gray Metallic finish |

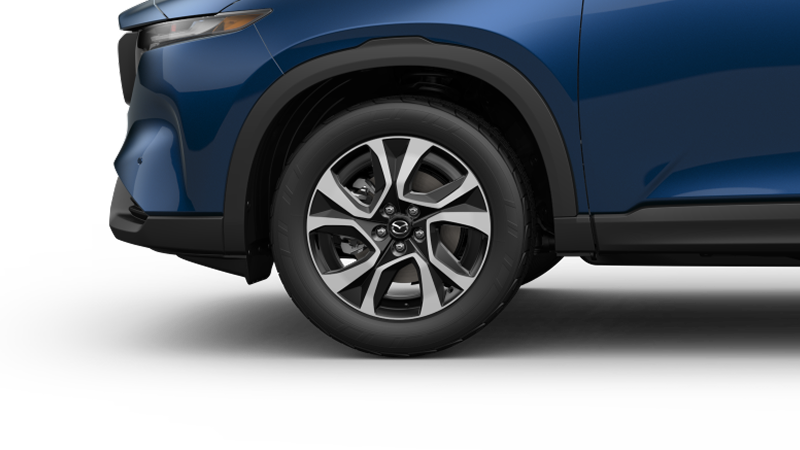

19 x 7 aluminum alloy Machine Cut with Black Metallic finish |

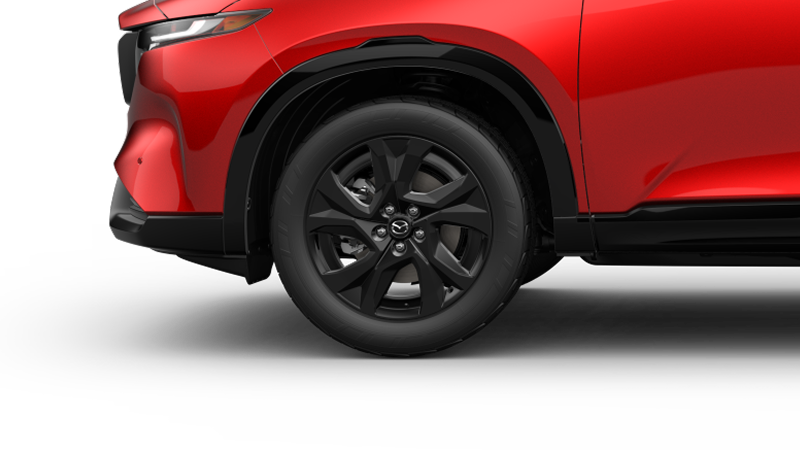

19 x 7 aluminum alloy with Black Metallic finish |
19 x 7 aluminum alloy with Black Metallic finish |
|
| TIRE SIZE | |||||
|
P225/65 R17 all-season tires |
P225/65 R17 all-season tires |
P225/55 R19 all-season tires |
P225/55 R19 all-season tires |
P225/55 R19 all-season tires |
|
| TEMPORARY SPARE TIRE | |||||
|
T145/90D16 |
T145/90D16 |
T145/90D16 |
T145/90D16 |
T145/90D16 |
EXTERIOR DIMENSIONS
| WHEELBASE (IN) | |||||
|
110.8 |
110.8 |
110.8 |
110.8 |
110.8 |
|
| TRACK, FRONT (IN) | |||||
|
63.2 |
63.2 |
63.2 |
63.2 |
63.2 |
|
| TRACK, REAR (IN) | |||||
|
64.0 |
64.0 |
64.0 |
64.0 |
64.0 |
|
| LENGTH, WITH LICENSE PLATE HOLDER (IN) | |||||
|
184.6 |
184.6 |
184.6 |
184.6 |
184.6 |
|
| WIDTH WITHOUT OUTER MIRROR (IN) | |||||
|
73.2 |
73.2 |
73.2 |
73.2 |
73.2 |
|
| WIDTH MIRROR TO MIRROR OPENED (IN) | |||||
|
81.8 |
81.8 |
81.8 |
81.8 |
81.8 |
|
| HEIGHT UP TO ROOF, WITHOUT ROOF RAILS (IN) | |||||
|
66.7 |
66.7 |
66.7 |
66.7 |
66.7 |
|
| MINIMUM GROUND CLEARANCE, UNLADEN (IN) | |||||
|
8.0 |
8.0 |
8.2 |
8.2 |
8.2 |
EXTERIOR COLORS
Rhodium White Premium
+$595
|
Rhodium White Premium
+$595
|
Rhodium White Premium
+$595
|
Rhodium White Premium
+$595
|
Rhodium White Premium
+$595
|
|
Jet Black Mica
|
Polymetal Gray Metallic
+$595
|
Polymetal Gray Metallic
+$595
|
Polymetal Gray Metallic
+$595
|
Polymetal Gray Metallic
+$595
|
|
Navy Blue Mica
|
Jet Black Mica
|
Jet Black Mica
|
Jet Black Mica
|
Jet Black Mica
|
|
Machine Gray Metallic
+$595
|
Navy Blue Mica
|
Navy Blue Mica
|
Navy Blue Mica
|
Navy Blue Mica
|
|
Aero Gray Metallic
+$595
|
Aero Gray Metallic
+$595
|
Aero Gray Metallic
+$595
|
Aero Gray Metallic
+$595
|
||
|
Machine Gray Metallic
+$595
|
Machine Gray Metallic
+$595
|
Machine Gray Metallic
+$595
|
Machine Gray Metallic
+$595
|
||
Soul Red Crystal Metallic
+$595
|
Soul Red Crystal Metallic
+$595
|
Soul Red Crystal Metallic
+$595
|
Soul Red Crystal Metallic
+$595
|
Interior
COMFORT & CONVENIENCE
|
|
|
|
|
STORAGE
|
|
|
|
|
SEATING & TRIM
|
|
|
|
|
AUDIO & INFOTAINMENT
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| MAZDA CONNECT™ INFOTAINMENT SYSTEM | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
INSTRUMENTATION
|
|
|
|
|
INTERIOR DIMENSIONS & CAPACITIES
| HEADROOM, FRONT/REAR WITHOUT MOONROOF (IN) | |||||
|
39.7 / 40.2 |
39.7 / 40.2 |
39.7 / 40.2 |
- |
- |
|
| HEADROOM, FRONT/REAR WITH MOONROOF (IN) | |||||
|
- |
- |
- |
39.2 / 39.1 |
39.2 / 39.1 |
|
| SHOULDER ROOM, FRONT/REAR (IN) | |||||
|
57.6 / 55.6 |
57.6 / 55.6 |
57.6 / 55.6 |
57.6 / 55.6 |
57.6 / 55.6 |
|
| HIP ROOM, FRONT/REAR (IN) | |||||
|
55.2 / 52.4 |
55.2 / 52.4 |
55.2 / 52.4 |
55.2 / 52.4 |
55.2 / 52.4 |
|
| LEGROOM, FRONT/REAR (IN) | |||||
|
41.7 / 39.9 |
41.7 / 39.9 |
41.7 / 39.9 |
41.7 / 39.9 |
41.7 / 39.9 |
|
| CARGO VOLUME, REAR SEATBACKS UP (SAE, CU FT) | |||||
|
33.7 |
33.7 |
33.7 |
33.7 |
33.7 |
|
| CARGO VOLUME, REAR SEATBACKS DOWN (SAE, CU FT) | |||||
|
66.5 |
66.5 |
66.5 |
66.5 |
66.5 |
INTERIOR COLORS
Black Cloth
|
Black Leatherette & Microsuede
|
Black Leatherette & Microsuede
|
Black Leather
|
Black Leather
|
|
Pure White Leatherette & Microsuede
|
Pure White Leatherette & Microsuede
|
Sport Tan Leather
|
Sport Tan Leather
|
ENGINE & MECHANICAL
ENGINE & MECHANICAL FEATURES
| ENGINE TYPE | |||||
|
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder23 |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder23 |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder23 |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder23 |
SKYACTIV®-G 2.5 DOHC 16-valve 4-cylinder23 |
|
| HORSEPOWER WITH 87 OCTANE UNLEADED FUEL | |||||
|
187 hp @ 6,000 rpm |
187 hp @ 6,000 rpm |
187 hp @ 6,000 rpm |
187 hp @ 6,000 rpm |
187 hp @ 6,000 rpm |
|
| TORQUE WITH 87 OCTANE UNLEADED FUEL | |||||
|
186 lb-ft @ 4,000 rpm |
186 lb-ft @ 4,000 rpm |
186 lb-ft @ 4,000 rpm |
186 lb-ft @ 4,000 rpm |
186 lb-ft @ 4,000 rpm |
|
| REDLINE | |||||
|
6,500 rpm |
6,500 rpm |
6,500 rpm |
6,500 rpm |
6,500 rpm |
|
| DISPLACEMENT (CC) | |||||
|
2488 |
2488 |
2488 |
2488 |
2488 |
|
| BORE X STROKE (MM) | |||||
|
89 x 100 |
89 x 100 |
89 x 100 |
89 x 100 |
89 x 100 |
|
| COMPRESSION RATIO | |||||
|
13.0 : 1 |
13.0 : 1 |
13.0 : 1 |
13.0 : 1 |
13.0 : 1 |
|
| FUEL SYSTEM | |||||
|
Advanced Direct Injection |
Advanced Direct Injection |
Advanced Direct Injection |
Advanced Direct Injection |
Advanced Direct Injection |
|
| RECOMMENDED FUEL | |||||
|
Regular unleaded |
Regular unleaded |
Regular unleaded |
Regular unleaded |
Regular unleaded |
|
| VALVETRAIN | |||||
|
Chain-driven dual overhead cams, 4 valves per cylinder with variable valve timing |
Chain-driven dual overhead cams, 4 valves per cylinder with variable valve timing |
Chain-driven dual overhead cams, 4 valves per cylinder with variable valve timing |
Chain-driven dual overhead cams, 4 valves per cylinder with variable valve timing |
Chain-driven dual overhead cams, 4 valves per cylinder with variable valve timing |
|
| IGNITION SYSTEM | |||||
|
Direct coil-on-plug electronic ignition with platinum-tipped spark plugs |
Direct coil-on-plug electronic ignition with platinum-tipped spark plugs |
Direct coil-on-plug electronic ignition with platinum-tipped spark plugs |
Direct coil-on-plug electronic ignition with platinum-tipped spark plugs |
Direct coil-on-plug electronic ignition with platinum-tipped spark plugs |
|
| ENGINE BLOCK | |||||
|
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
|
| CYLINDER HEAD | |||||
|
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
|
| EMISSION CONTROL TYPE (FED/CAL) | |||||
|
T3B30/SULEV30 |
T3B30/SULEV30 |
T3B30/SULEV30 |
T3B30/SULEV30 |
T3B30/SULEV30 |
|
| SKYACTIV-VEHICLE DYNAMICS WITH G-VECTORING CONTROL PLUS | |||||
|
Standard |
Standard |
Standard |
Standard |
Standard |
EPA-ESTIMATED FUEL ECONOMY
| AWD, AUTOMATIC TRANSMISSION (CITY/HWY) | |||||
|
24 / 3024 |
24 / 3024 |
24 / 3024 |
24 / 3024 |
24 / 3024 |
DRIVETRAIN
| TYPE | |||||
|
|
|
|
|
|
| AUTOMATIC TRANSMISSION | |||||
|
SKYACTIV®-Drive25 6-speed automatic transmission with manual shift mode |
SKYACTIV®-Drive25 6-speed automatic transmission with manual shift mode |
SKYACTIV®-Drive25 6-speed automatic transmission with manual shift mode |
SKYACTIV®-Drive25 6-speed automatic transmission with manual shift mode |
SKYACTIV®-Drive25 6-speed automatic transmission with manual shift mode |
|
| GEAR RATIOS (:1) | |||||
|
|
|
|
|
CHASSIS
| BRAKES | |||||
|
4-wheel disc, diagonal hydraulic |
4-wheel disc, diagonal hydraulic |
4-wheel disc, diagonal hydraulic |
4-wheel disc, diagonal hydraulic |
4-wheel disc, diagonal hydraulic |
|
| FRONT | |||||
|
12.9-inch vented disc |
12.9-inch vented disc |
12.9-inch vented disc |
12.9-inch vented disc |
12.9-inch vented disc |
|
| REAR | |||||
|
11.8-inch solid disc |
11.8-inch solid disc |
11.8-inch solid disc |
11.8-inch solid disc |
11.8-inch solid disc |
|
| ANTI-LOCK BRAKE SYSTEM (ABS) | |||||
|
4-wheel, 4-channel with Electronic Brakeforce Distribution (EBD) and Brake Assist |
4-wheel, 4-channel with Electronic Brakeforce Distribution (EBD) and Brake Assist |
4-wheel, 4-channel with Electronic Brakeforce Distribution (EBD) and Brake Assist |
4-wheel, 4-channel with Electronic Brakeforce Distribution (EBD) and Brake Assist |
4-wheel, 4-channel with Electronic Brakeforce Distribution (EBD) and Brake Assist |
|
| STEERING TYPE | |||||
|
Power rack-and-pinion with variable assist |
Power rack-and-pinion with variable assist |
Power rack-and-pinion with variable assist |
Power rack-and-pinion with variable assist |
Power rack-and-pinion with variable assist |
|
| POWER ASSIST | |||||
|
Electronic Power Assist Steering (EPAS) |
Electronic Power Assist Steering (EPAS) |
Electronic Power Assist Steering (EPAS) |
Electronic Power Assist Steering (EPAS) |
Electronic Power Assist Steering (EPAS) |
|
| OVERALL STEERING RATIO | |||||
|
14.4:1 |
14.4:1 |
14.4:1 |
14.4:1 |
14.4:1 |
|
| STEERING WHEEL TURNS, LOCK-TO-LOCK | |||||
|
2.75 |
2.75 |
2.75 |
2.75 |
2.75 |
|
| TURNING CIRCLE DIAMETER, CURB-TO-CURB (FT) | |||||
|
36.8 |
36.8 |
36.8 |
36.8 |
36.8 |
|
| SUSPENSION | |||||
|
4-wheel independent |
4-wheel independent |
4-wheel independent |
4-wheel independent |
4-wheel independent |
|
| FRONT SUSPENSION | |||||
|
MacPherson strut with stabilizer bar |
MacPherson strut with stabilizer bar |
MacPherson strut with stabilizer bar |
MacPherson strut with stabilizer bar |
MacPherson strut with stabilizer bar |
|
| REAR SUSPENSION | |||||
|
Multilink with stabilizer bar |
Multilink with stabilizer bar |
Multilink with stabilizer bar |
Multilink with stabilizer bar |
Multilink with stabilizer bar |
WEIGHTS & CAPACITIES
| CURB WEIGHT (POUNDS) | |||||
|
3,856 |
3,856 |
3,856 |
3,856 |
3,856 |
|
| TOWING CAPACITY (POUNDS) | |||||
|
1,50026 |
1,50026 |
1,50026 |
1,50026 |
1,50026 |
|
| FUEL CAPACITY (GALLONS) | |||||
|
15.3 |
15.3 |
15.3 |
15.3 |
15.3 |
SAFETY & SECURITY
SAFETY FEATURES
|
|
|
|
|
SMART BRAKE SUPPORT44
|
|
|
|
|
